Pysimxrd User Manual

1. What Pysimxrd Does

Pysimxrd generates physically varied powder X-ray diffraction patterns from crystal structures stored in an ASE database. The examples in sim/ show three common workflows:

The package has two simulation paths. The default path uses pymatgen for peak positions and the shared broadening/noise model. The optional sim_model="WPEM" path uses in-repository diffraction-condition, extinction, multiplicity, and structure-factor logic.

2. Installation

Create a clean Python environment. The simulation tutorial in sim/tutorial_sim.ipynb recommends Python newer than 3.9.

conda create -n pysimxrd python=3.10
conda activate pysimxrd

Install from PyPI after release:

pip install Pysimxrd

Install from this repository during development:

cd SimXRD/src
pip install -e .

Optional packages for the examples:

pip install matplotlib tqdm

3. Start from Data

Pysimxrd expects crystal structures in an ASE database. The repository includes a small example database at sim/demo_mp.db.

3.1 Inspect the demo database

from ase.db import connect

database = connect("sim/demo_mp.db")
print("number of structures:", database.count())

row = database.get(id=1)
atoms = row.toatoms()

print("formula:", atoms.get_chemical_formula())
print("cell parameters:", atoms.cell.cellpar())
print("symbols:", atoms.get_chemical_symbols()[:10])

An ASE row stores an atomic structure. Pysimxrd reads this row, converts the structure when needed, and returns a simulated XRD profile.

3.2 Prepare your own database

If you already have ASE Atoms objects, write them into a database:

from ase.db import connect

db = connect("my_crystals.db")
db.write(atoms, name="sample_001")

If your structures are in CIF files, load them with ASE and write them to a database:

from ase.io import read
from ase.db import connect

db = connect("my_crystals.db")
atoms = read("example.cif")
db.write(atoms, name="example")

After that, use my_crystals.db in exactly the same way as sim/demo_mp.db.

4. Simulate One Pattern

The core entry point is Pysimxrd.generator.parser. It returns x and y arrays.

from ase.db import connect
from Pysimxrd import generator

database = connect("sim/demo_mp.db")
entry_id = 1

x, y = generator.parser(database, entry_id)

print(len(x), len(y))
print(x[:5])
print(y[:5])

By default, x is 2-theta in degrees and y is normalized intensity.

Return d-spacing instead of 2-theta

x_d, intensity = generator.parser(
    database,
    entry_id,
    xrd="real",
)

5. Plot and Save Figures

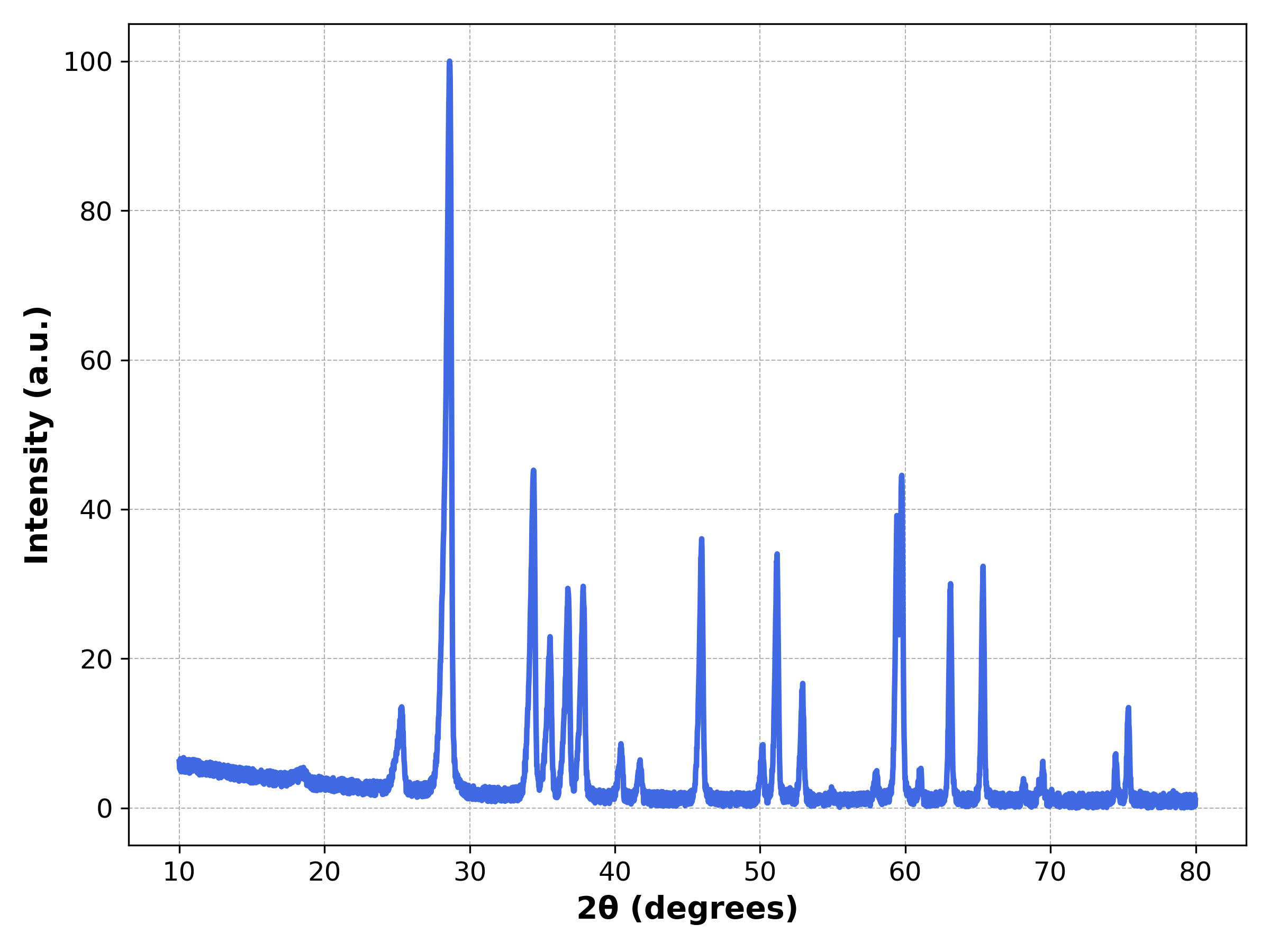

The notebook sim/XRD.ipynb plots default settings, stronger preferred orientation, and stronger thermal vibration. The same code can be used in a Python script.

import matplotlib.pyplot as plt
from ase.db import connect
from Pysimxrd import generator

database = connect("sim/demo_mp.db")
x, y = generator.parser(database, entry_id=8)

plt.figure(figsize=(8, 6))
plt.plot(x, y, color="royalblue", linewidth=2.5)
plt.xlabel("2θ (degrees)", fontsize=14, weight="bold")
plt.ylabel("Intensity (a.u.)", fontsize=14, weight="bold")
plt.grid(True, which="both", linestyle="--", linewidth=0.5)
plt.tight_layout()
plt.savefig("xrd_pattern.png", dpi=300)
plt.show()

6. Parameter Guide

The high-throughput script sim/ht_simxrd.py documents the main simulation parameters. The most useful controls are:

Examples from sim/XRD.ipynb

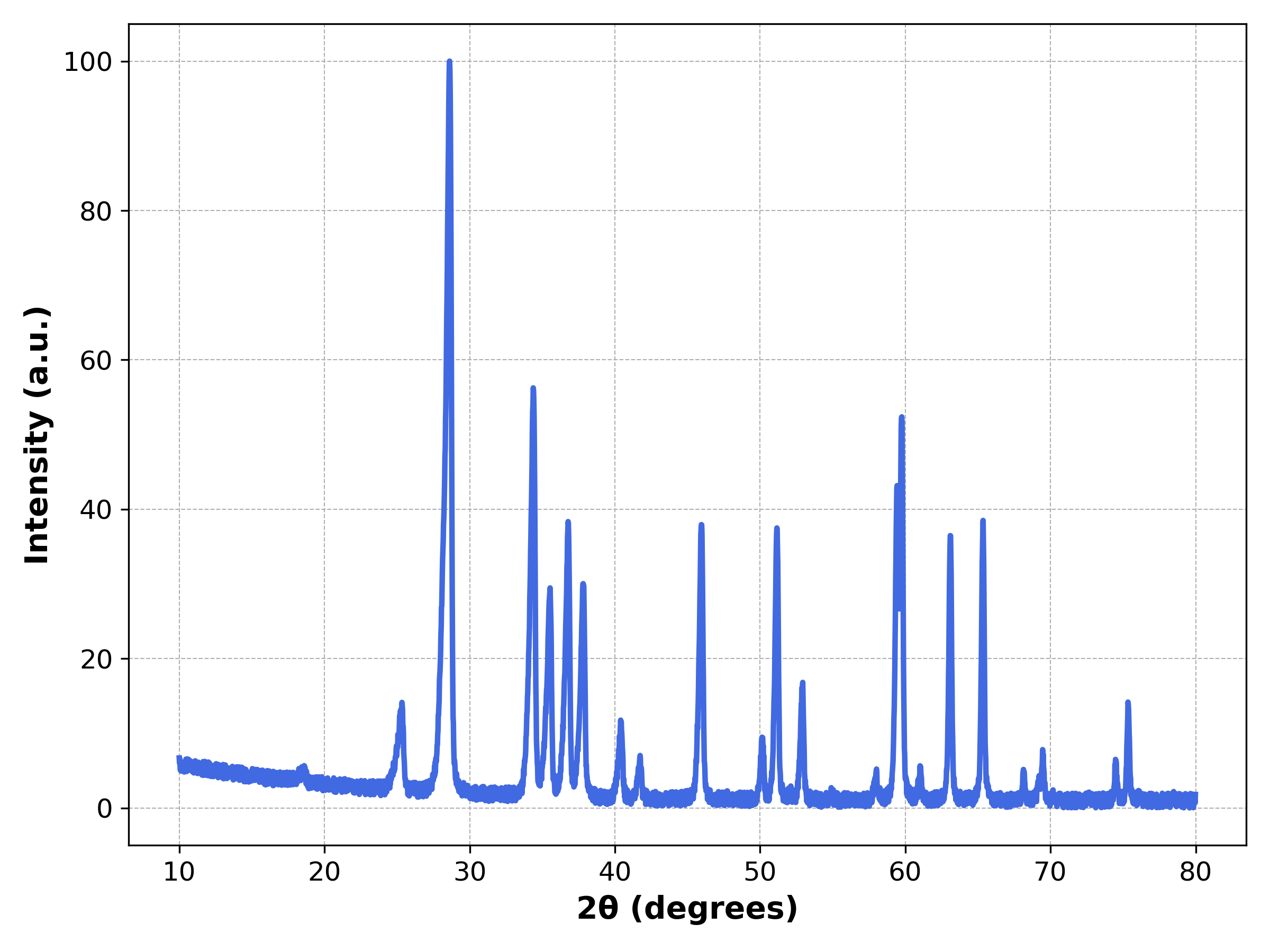

# More preferred-orientation variation
x, y = generator.parser(database, entry_id=8, prefect_orientation=[0.2, 0.2])

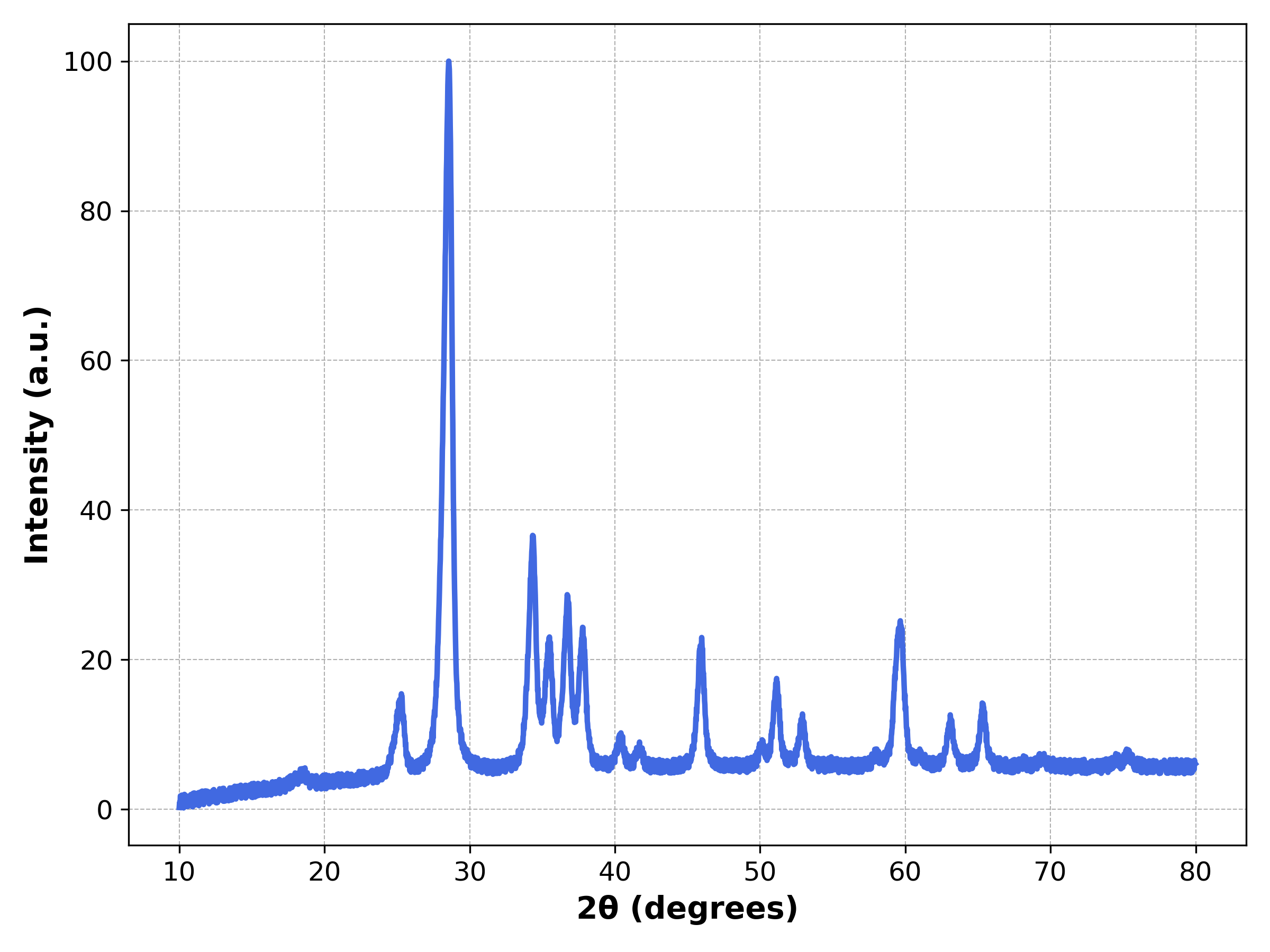

# Stronger thermal vibration and smaller grain size
x, y = generator.parser(database, entry_id=8, thermo_vibration=0.4, grainsize=5)

7. WPEM Mode

Use WPEM mode when you want the in-repository diffraction condition, systematic extinction, multiplicity, and structure-factor pipeline.

x, y = generator.parser(
    database,
    entry_id=1,
    sim_model="WPEM",
)

Use WPEM with deformation:

x, y = generator.parser(
    database,
    entry_id=1,
    sim_model="WPEM",
    deformation=True,
    lattice_extinction_ratio=0.01,
    lattice_torsion_ratio=0.01,
)

8. High-throughput Simulation

The file sim/ht_simxrd.py shows how to simulate many patterns from one input database and save them to a new ASE database.

Run the example from the sim/ directory:

cd sim
python ht_simxrd.py

For a long job, the notebook suggests:

nohup python ht_simxrd.py &

The script reads demo_mp.db, writes train.db, and by default generates one simulated pattern per structure in the demo script.

Core batch pattern

from ase.db import connect
from Pysimxrd import generator

input_db = connect("my_crystals.db")
output_db = connect("my_simulated_xrd.db")

for row in input_db.select():
    atoms = row.toatoms()
    x, y = generator.parser(input_db, row.id, deformation=True)
    output_db.write(
        atoms=atoms,
        latt_dis=str(x),
        intensity=str(y),
        Label=row.id,
    )

The high-throughput script adds randomized parameters such as grain size, orientation, thermal vibration, and zero shift for each simulation.

9. Read Generated Data

The generated database stores the original atoms plus simulated arrays as string fields. Convert them back to arrays with ast.literal_eval or numpy.fromstring depending on the string format you wrote.

from ase.db import connect
import numpy as np

db = connect("sim/train.db")
row = db.get(id=1)

atoms = row.toatoms()
x = np.fromstring(row.latt_dis.strip("[]"), sep=" ")
y = np.fromstring(row.intensity.strip("[]"), sep=",")

print(atoms.get_chemical_formula())
print(x.shape, y.shape)

If you save arrays with str(list(x)), use ast.literal_eval instead:

import ast
import numpy as np

x = np.array(ast.literal_eval(row.latt_dis))
y = np.array(ast.literal_eval(row.intensity))

10. Troubleshooting
